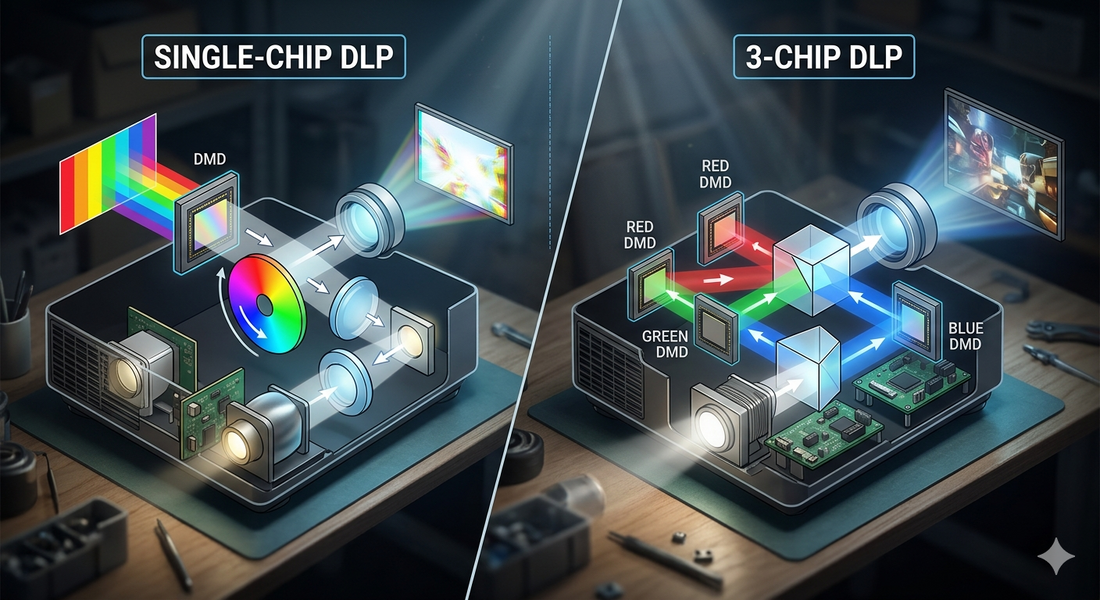

Single Chip vs 3-Chip DLP Projector: What's the Difference?

If you have been researching DLP projectors, you may have come across the terms "single chip" and "3-chip." They sound technical, but the difference is actually straightforward — and it has a huge impact on image quality, price, and who each type is designed for. Here is everything you need to know, explained simply.

🔧 How DLP Technology Works

Before we compare single chip and 3-chip, let us quickly understand what DLP is. DLP stands for Digital Light Processing, a technology invented by Texas Instruments. At its core is a DMD chip (Digital Micromirror Device) — a tiny chip covered in millions of microscopic mirrors, one for each pixel in the image.

Each mirror can tilt thousands of times per second, reflecting light toward the screen (pixel on) or away from it (pixel off). By controlling the tilt angle and timing precisely, the chip creates a complete image. The magic happens in how color is added to that image — and that is where single chip and 3-chip differ.

1️⃣ Single Chip DLP: How It Works

A single chip DLP projector has one DMD chip and a spinning color wheel. The color wheel is a disc divided into segments — typically red, green, blue, and sometimes white or yellow. It spins at high speed (up to 14,400 RPM on some models) in front of the light source.

As the wheel spins, it filters the light into sequential colors. The DMD chip creates the image for each color in rapid succession — red, then green, then blue — and your brain blends these sequential flashes into a single, full-color image. This happens so fast that most people perceive a seamless picture.

The keyword here is sequential. Only one color is displayed at any given instant. Your brain does the mixing. This works remarkably well for most people — but it has a side effect called the rainbow effect.

3️⃣ 3-Chip DLP: How It Works

A 3-chip DLP projector takes a completely different approach. Instead of one chip and a color wheel, it uses three separate DMD chips — one for red, one for green, and one for blue.

A prism splits the incoming light into three separate beams by color. Each beam hits its own dedicated chip, and all three chips create their part of the image simultaneously. The three colored images are then recombined through the prism into one final, full-color image projected onto the screen.

The keyword here is simultaneous. All three colors are displayed at the same time, every single frame. No color wheel, no sequential flashing, no compromise.

⚔️ Key Differences Explained

🌈 Rainbow Effect

This is the most talked-about difference. The spinning color wheel in single chip projectors can produce brief flashes of red, green, and blue — visible as rainbow-like streaks, especially during high-contrast scenes (white text on a black background, for example) or when you move your eyes quickly across the screen.

Not everyone sees the rainbow effect. Estimates suggest 15 to 25% of viewers are sensitive to it, and for most of those people it is a minor annoyance rather than a dealbreaker. Modern single chip projectors with faster color wheels (6x speed and above) have reduced the effect significantly.

3-chip DLP projectors completely eliminate the rainbow effect because all colors are displayed simultaneously. If you are rainbow-sensitive, this alone might justify the upgrade — but there are more affordable alternatives (LCD or laser projectors also have no rainbow effect).

🎨 Color Accuracy and Brightness

Because 3-chip projectors display all three colors at the same time, they achieve higher color brightness and more accurate, consistent colors. Single chip models sacrifice some color output because each color is only displayed for a fraction of the total time — the wheel segments share the light.

In practice, this means 3-chip projectors produce more vivid, lifelike images with better color uniformity across the entire screen. For professional applications — cinema screenings, live events, museum installations — this difference matters a lot.

💰 Price

This is where the two types diverge dramatically:

The price difference is not subtle. 3-chip DLP projectors use three times the mirror chips plus a complex prism assembly, which dramatically increases manufacturing cost. This is professional equipment, not consumer gear.

📐 Size and Weight

Single chip projectors can be incredibly compact — some weigh under 2 lbs and fit in a backpack. The single chip and small color wheel keep the design tight and lightweight.

3-chip projectors are significantly larger and heavier. The three DMD chips, the prism, and the additional optics require a bigger chassis. Most 3-chip models weigh 20 to 50+ lbs and need professional installation.

📊 Side-by-Side Comparison

🤔 What If I Am Sensitive to the Rainbow Effect?

If you have seen the rainbow effect on a DLP projector and it bothers you, buying a $10,000+ 3-chip DLP is not your only option. There are much more affordable alternatives that also eliminate the rainbow effect completely:

🏆 Which Should You Choose?
